Removing or replacing a redundant power supply (vertically stacked model)

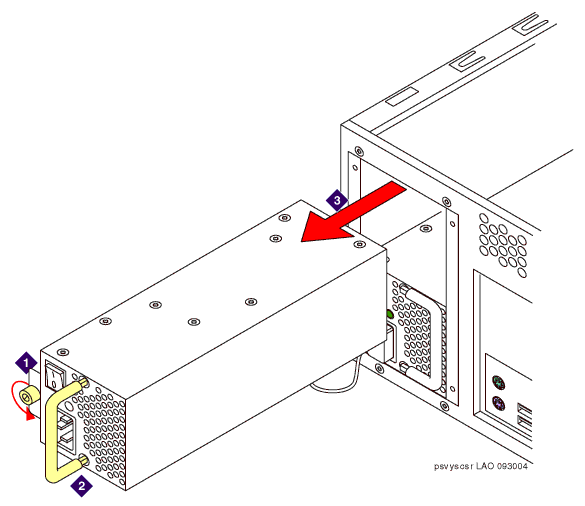

Removing a vertically stacked model of redundant power supply

1	Turn the power switch for this unit off, and then loosen the retaining screw.
2	Lift handle.
3	Pull from chassis.
