Removing or replacing a redundant power supply (side-by-side model)

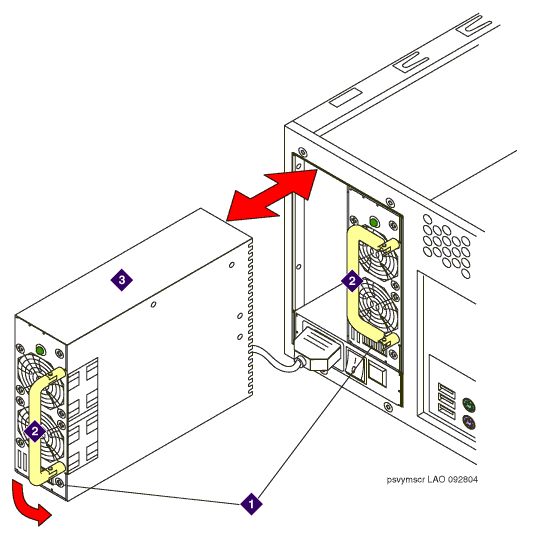

Removing a side-by-side model of redundant power supply

1	Loosen thumbscrew (turn several times towards unlocked position).
2	Lift handle.
3	Pull from chassis.
