Made Easy Tool for DEFINITY Media Server Configurations
Issue 5, October 2002



Bring the System Online

Set Country Options

Return to Task List

Certain country options need to be set to turn red failure indication LEDs off. Refer to Country Codes for a list of country codes.

  1. Type change system-parameters country options and press Enter.

    2. A screen similar to Typical System Parameters Country-Options Screen is displayed. The cursor is set on the Companding Mode line.

  2. If the country uses A-Law companding, type A-Law and press Enter.

    3. The default companding mode is mu-Law.

    Other items eventually need to be entered on this screen, but this is all that must be done to turn the red alarm LEDs off.

  3. If all red LEDs do not go off, reseat (unplug and reinsert) any port circuit packs displaying red LEDs.


Caution! To avoid a disk crash, never reseat the DEFINITY AUDIX System without first shutting it down. Shut down the DEFINITY AUDIX System (and allow the disk to completely spin down) before unplugging the assembly. See DEFINITY AUDIX System Power Procedures for the proper procedures.

  1. If the red LEDs still do not go off, refer to Maintenance for Avaya MultiVantage DEFINITY Server SI or Maintenance for Avaya MultiVantage DEFINITY Server R .


Note: Ignore the red alarm indication LED on the TN767 or TN464/2464 DS1 circuit pack until after the DS1 circuit pack is administered. Alarms will appear in the Alarm Log when power is applied to the system before all equipment connecting to port circuit packs is installed. Normally, some alarms will be logged when power is applied to the system, but should be resolved quickly. If no equipment is connected to the port circuit packs, alarms associated with these ports can take up to four hours to log, but will clear automatically after all equipment is installed and operating correctly.

Country Codes
Country
Code
Country
Code

USA

1

Czechoslovakia

14

Australia

2

Russia

15

Japan

3

Argentina

16

Italy

4

Greece

17

Netherlands

5

China

18

Singapore

6

Hong Kong

19

Mexico

7

Thailand

20

Belgium

8

Macedonia

21

Saudi Arabia

9

Poland

22

United Kingdom

10

Brazil

23

Spain

11

Nordic

24

France

12

South Africa

25

Germany

13

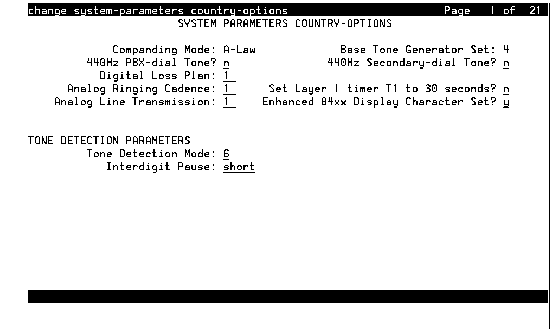

Typical System Parameters Country-Options Screen
