Install Telecommunications Cabling

---

Main Distribution Frame

The preferred location of the Main Distribution Frame (MDF) is directly behind the Single-Carrier Cabinet (SCC1) stack or the Multi-Carrier Cabinet MCC1). Typical 110A-Type Terminal Blocks (SCC1) shows a typical SCC1 (Single-Carrier Cabinet) installation using 110A-type terminal blocks, and Typical 110P-Type Terminal Blocks (MCC1) shows a typical Multi-Carrier Cabinet installation using 900-pair 110P-type terminal blocks.

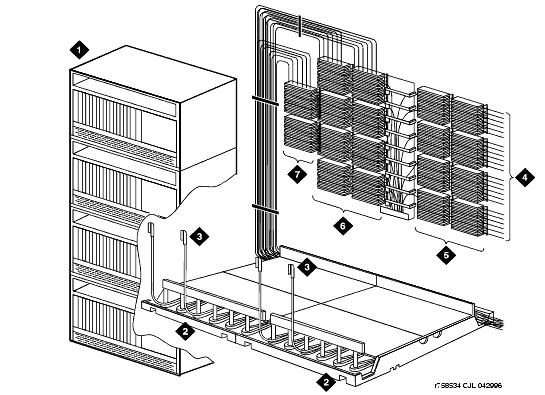

Typical 110A-Type Terminal Blocks (SCC1)

Figure Notes

1. Single-Carrier Cabinets (Stacked) (SCC1)


2. Z113A Cable Slack Manager


3. 25-Pair Cable to System Cabinet


4. Station Cables


5. Station Distribution Field


6. Port Distribution Field


7. Trunk/Auxiliary Field

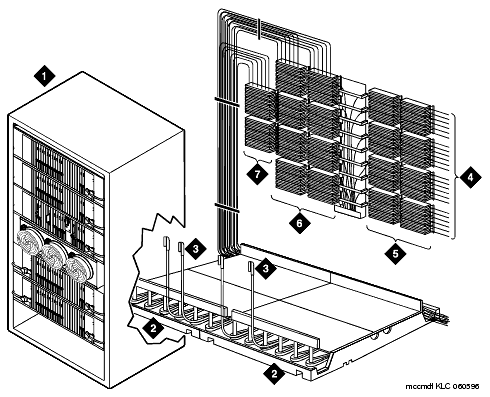

Typical 110P-Type Terminal Blocks (MCC1)

Figure Notes

1. Multi-Carrier Cabinet (MCC1)


2. Z113A Cable Slack Manager


3. 25-Pair Cable to System Cabinet


4. Station Cables


5. Station Distribution Field


6. Port Distribution Field


7. Trunk/Auxiliary Field

---
