Install and Wire Telephones

---

Digital Tie Trunk Example

Return to Task List

This example shows how to connect digital tie trunk wiring from one DEFINITY System to another DEFINITY System. Digital Tie Trunk Wiring shows the connections.

1. Install cross-connect jumpers to connect the pins from the digital trunk circuit pack to appropriate pins on the manufacturer's or supplier's external digital trunk.


2. Set option switches on the port circuit pack (Digital Trunk).



Go to Option Switch Settings for detailed information.

3. Administer on the DS1 and Trunk Group Screens of the management terminal. Refer to the Administrator's Guide for Avaya MultiVantage^TM Software for more details.

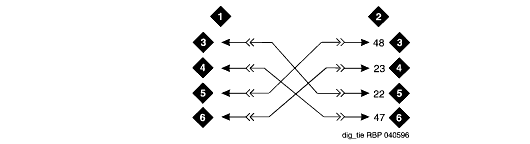

Digital Tie Trunk Wiring

Figure Notes:

1. External Trunk


2. Digital Trunk Circuit Pack, Position 1C06


3. LO


4. LO (Balanced Output Pair)


5. LI


6. LI (Balanced Input Pair)
