Made Easy Tool for DEFINITY Media Server Configurations
Issue 5, October 2002



Install and Administer Trunks

Changing the Route Patterns

Return to Task List

  1. At the prompt, type change route-pattern < number> (the route pattern to be changed; in the example in Route Pattern form (Page 1, Pattern Number 11), the route pattern is 11) and press Enter.

  2. On the Route Pattern screen, in Grp. No. field, enter the CAMA trunk group number.

  3. In the FRL field, enter 0.


Note: For the following step, if the Central Office (CO) wants KP11ST as the dialed digit string, then leave blank. If the CO wants KP911ST, then insert a 9 in the Inserted Digits field.

  1. Administer the Inserted Digits field if needed and press Enter.

  2. At the prompt, type change route-pattern < number> (the route pattern to be changed; in Route Pattern form (Page 1, Pattern Number 12), the route pattern is 12) and press Enter.

  3. On the Route Pattern screen, in Grp. No. field, type the CAMA trunk group number and press Enter.

  4. In the FRL field, type 0.


Note: For the following step, if the Central Office (CO) wants KP911ST as the dialed digit string, then leave blank. If the CO wants KP11ST, then delete one digit.

  1. Administer No. Del Digits field if needed and press Enter.

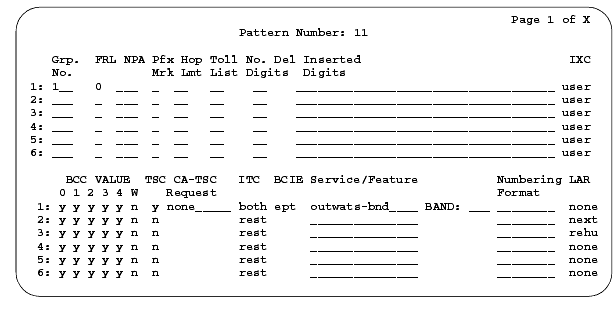

Route Pattern form (Page 1, Pattern Number 11)

Route Pattern form (Page 1, Pattern Number 12)

Return to Task List
