Made Easy Tool for DEFINITY Media Server Configurations
Issue 5, October 2002



Test the System

Test Expansion Interface Circuit Packs

Return to Task List

Check each Expansion Interface (EI) circuit pack in the system.

  1. Type test board UUCSS where UUCSS is the cabinet, carrier, and slot for an Expansion Interface (EI) circuit pack in the system, and press Enter.


Note: Labels on the port network and carrier and on the strip under the circuit pack contain this information.

  1. Verify the screen displays test results similar to Sample Test Results for Expansion Interface Board 2A01. This example is for board 2a01.

  2. If any result is FAIL, check the connections for the fiber optic link.

  3. Repeat Steps 1 and 2 for each Expansion Interface circuit pack.

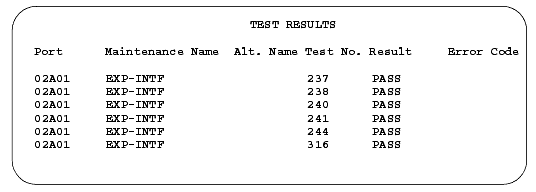

Sample Test Results for Expansion Interface Board 2A01

Return to Task List
