Made Easy Tool for DEFINITY Media Server Configurations
Issue 5, October 2002

Bring the System Online

Connect Remotely to the Avaya Media Gateway Through a Modem

Return to Task List

You can connect a PC to the Avaya Media Gateway through an analog modem to an INADS port.

Connect the equipment as shown in A typical remote connection through a modem to access a remote Avaya Media Gateway.

Follow these steps to connect to the Avaya Media Gateway through a modem.

1. Connect the computer to the modem.


2. Connect an analog telephone line to the leftmost analog-line port on the modem.


3. Make sure that the modem's DIP switches are set as shown in U.S. Robotics Modem DIP Switch Settings.


4. Plug the modem into an AC power outlet.


5. Turn on the modem.


6. Set the following port settings:

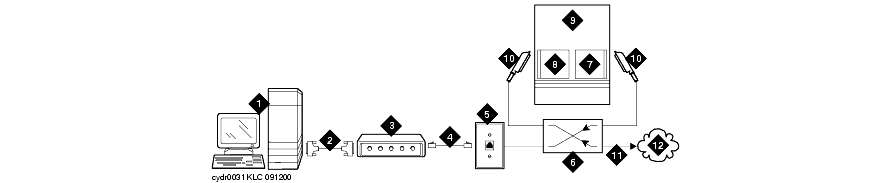

A typical remote connection through a modem to access a remote Avaya Media Gateway

Figure Notes:

1. Computer with Avaya Site Administration


2. 50-ft (15-m) M25A cable (RS-232--9-25 pin adapter if needed)


3. Analog modem


4. 7-ft (2-m) D2W modular cord


5. 103A or Avaya modular wall jack


6. Main distribution frame (MDF)


7. Analog line circuit pack


8. Analog trunk circuit pack
   Packet data line (r)
   Data line (r)


9. Avaya Media Gateway


10. B25A cable


11. Analog line

Return to Task List
