Install and Wire Telephones

---

Install the Queue Warning Indicator

Return to Task List

The connections for the queue warning indicator are the same as external ringing. An AC indicator (lamp) such as a 21C49 can be used in a Uniform Call Distribution/Direct Departmental Calling (UCD/DDC) queue.

The lamp is connected to an information outlet. The system side of the MDF is connected to an analog line circuit pack located in a port carrier.

1. Wire the queue warning indicator to the information outlet as shown in 3-Pair and 4-Pair Modularity and Example Adjunct Power Connections.


2. Administer per the Administrator's Guide for Avaya MultiVantage^TM Software.

3-Pair and 4-Pair Modularity

Figure Notes:

1. Port Circuit Pack


2. System Cabinet Connector Pins
   (3-Pair Modularity)


3. Main Distribution Frame (MDF) Pins
   (3-Pair Modularity)


4. Input to Information Outlet (4-Pair Modularity)


5. Adjunct Power


6. Output From Information Outlet (4-Pair Modularity)


7. Voice or Data Terminal Pins

Example Adjunct Power Connections

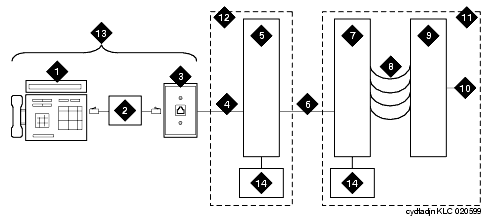

Figure Notes:

1. Typical Display Telephone


2. Individual Power Supply (Such as 1151A1 or 1151A2)


3. Information Outlet (Modular Jack)


4. 4-Pair D-Inside Wire (DIW) Cable


5. Satellite Site or Adapter Location


6. 25-Pair D-Inside Wire (DIW) Cable


7. Station Side of Main Distribution Frame (MDF)


8. 100P6A Patch Cord or Jumpers


9. System Side of Main Distribution Frame (MDF)


10. 25-Pair Cable to System Cabinet (Analog Line Circuit Pack)


11. Equipment Room


12. Satellite Location


13. Work Location


14. Bulk Power Supply (Such as 1145B)
