Connect DC Power Distribution Unit Ground
Return to Task List
- Measure and cut a length of 4 AWG (#5) (21 mm
2) wire long enough to reach between the GROUND DISCHARGE bar in the DC Power Cabinet and the GRD connector on the DC Distribution Unit. See DC Power Distribution Unit Ground.
- At the DC Power Cabinet, connect a the 4 AWG (#5) (21 mm
2) wire to the GROUND DISCHARGE bar.
- Route the opposite end of the wire to the DC Power Distribution Unit and connect the wire to the GRD connector.
- Repeat Steps 2 and 3 for each remaining DC Power Distribution Unit.

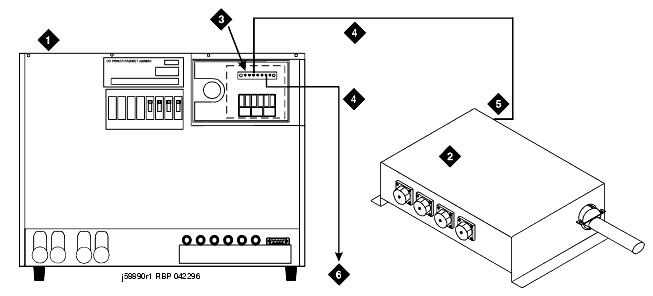

DC Power Distribution Unit Ground
Figure Notes:
- DC Power Cabinet
- DC Power Distribution Unit
- Ground Discharge Bar
- 4 AWG (#5) (21 mm
2) Wire
- GRD Connector Terminal on DC Power Distribution Unit
- To Additional DC Power Distribution Units (if required)
