Standard Reliability PPN - One Cabinet Stack
Return to Task List
- Remove the Time Division Multiplexing (TDM) Bus Terminator (AHF110) from Slot 18 of the Control Cabinet (Processor Port Network (PPN)) and move it to Slot 17 on the top Port Cabinet. See Connections for Standard Reliability Systems.
- Connect the supplied Time Division Multiplexing (TDM) Bus Cables
(WP-91716 L3) as shown in Connections for Standard Reliability Systems.

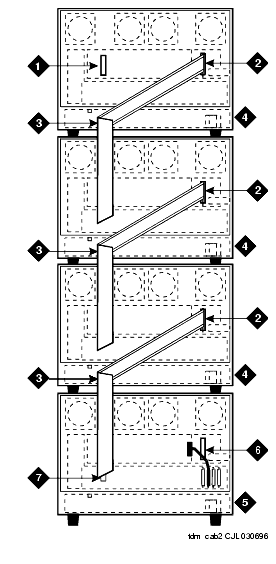

Connections for Standard Reliability Systems
Figure Notes:
- AHF110 TDM Bus Terminator (Slot 17)
- TDM/Local Area Network (TDM/LAN) Pinfield (Slot 00)
- TDM Bus Cable WP-91716 L3
- Port Cabinet (Standard Reliability)
- Control Cabinet A Position
- AHF110 TDM Bus Terminator (Slot 03)
- Slot 18
