Made Easy Tool for DEFINITY Media Server Configurations
Issue 4, May 2002



UPS Installation for SCC1 EPN A-Carrier Cabinet

Wire the 700A8 Plug

Return to Task List

  1. Cut a piece of 24AWG (2 twisted pairs) wire long enough to reach from the rear of the UPS to the 110 cross-connect field.

  2. Hold the clear cover for the 700A8 plug in your hand with the punch down grooves away from you. The groove on the left side is pin 1. See Wiring the 700A8 Plug.


Note: If the wire pairs are not in the correct positions, then the alarm verification test may not work.

  1. Route the wires through the cover, placing the utility fail pair in positions 1 and 2 and the UPS pair in positions 5 and 6. Positions 3, 4, 7, and 8 are not used.

  2. Press the plug onto the cover. This forces the wires into the plug contacts.

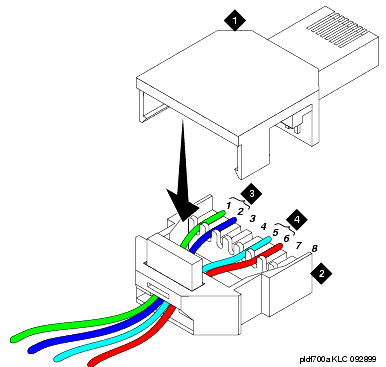

Wiring the 700A8 Plug

Figure Notes
      1. 700A8 plug

      2. Clear cover for 700A8 plug

      3. Utility fail wire pair

      4. UPS fail wire pair

Return to Task List
