Made Easy Tool for DEFINITY Media Server Configurations
Issue 4, May 2002
System 75 XE to R8si (Blowback)
Install cable clamps [75 XE upgrade]
Behind the cabinets using screws provided, install two cable clamps on each ground plate (see Locations of ground plate and cable clamps on single-carrier cabinet). These clamps are used to hold the port cables.

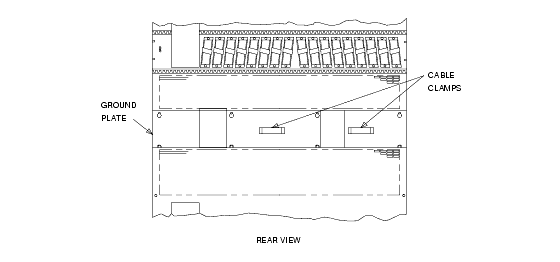

Locations of ground plate and cable clamps on single-carrier cabinet
|
|
|
|
|
|
|
|
|
|
