Install circuit packs [75 small upgrade]

Return to Task List


Danger! Before inserting or removing a circuit pack from a cabinet, put on a wrist strap and attach its plug or clip to the cabinet's frame.

  1. For a carrier upgrade only:
    Install the new R8si control circuit packs into control carrier A. See Representative J58890AH control carrier, the new decal, and the annotated list configuration all (provided with the R8si translation memory card) as a guide.


Danger! The reinstalled port circuit packs must conform to the usable vintage requirements for an R8si system (see Reference Guide for Circuit-Pack Vintages and Change Notices).

  1. Install the port circuit packs previously removed into the A carrier using the decal and the annotated list configuration all (provided with the R8si translation memory card) as a guide.


Note: The new R8si control carrier has only 1 more port slot than a J58890AB control carrier. You may need to move and retranslate circuit packs. If it was not done before the upgrade, relocate the circuit packs now. The relocated port circuits will have to be translated after the system is rebooted with the R8si translation memory card.

  1. Install circuit-pack blanks in slots not equipped with circuit packs.

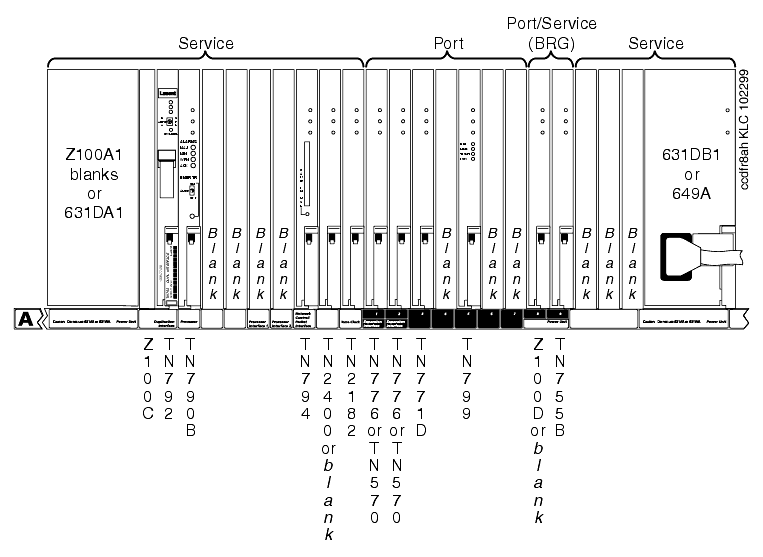

Representative J58890AH control carrier

Return to Task List
