Web Agent Procedure
To view AppleTalk zone table statistics using the Web Agent:
- In the navigation pane, expand the Routing > AppleTalk > Display folders, and then click Zone Table Statistics.
The AppleTalk Zone Table Statistics Web page is displayed in the content pane. See Figure�19-25.

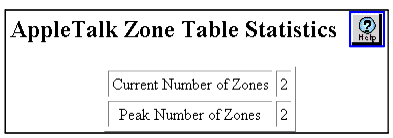

Figure 19-25. AppleTalk Zone Table Statistics Table
- See Table�19-11 for an explanation of the AppleTalk Zone Table Statistics parameters.
Table 19-11. AppleTalk Zone Table Statistical Parameters
| Parameter |
Definition |
| Current Number of Zones |
Displays the current number of AppleTalk zones. |
| Peak Number of Zones |
Displays the peak number of AppleTalk zones. |
