Web Agent Procedure

To create IP static routes using the Web Agent:

  1. In the navigation pane, expand the Routing > IP > Configuration folders.
  2. Click Static Routes. The IP Static Routes Web page is displayed in the content pane.
  3. Click CREATE. The Add IP Static Route Web page is displayed in the content pane. See Figure�12-6.

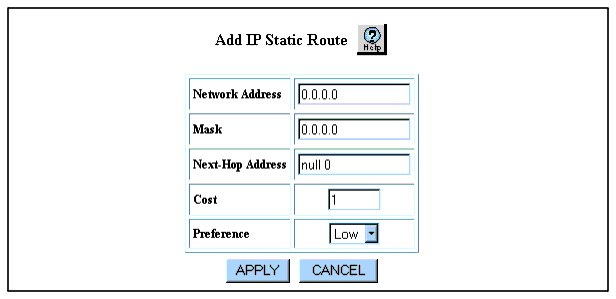

Figure 12-6. Add IP Static Route Web Page


  1. Configure the static route as appropriate. See Table�12-5 for an explanation of the Web page fields.
  2. Click APPLY to save your changes, or CANCEL to restore previous settings.

Table 12-5. IP Static Route Parameters
Field
Explanation
Network Address
Enter an IP network address for your IP static route.
Mask
Enter an IP subnet mask for your IP static route.
Next-Hop Address
Enter an IP address for the gateway associated with the IP static route.
The default setting is null 0, which creates a discard route. For information on creating a discard route, see "Creating a Static Route to a Null Interface."
Cost
Enter the metric between this router and the destination.
Preference
Select a low or high routing preference from the Preference field pull-down menu.
Preference overrides cost. If two routes of the same preference are present, the switch uses the route that has the lower cost.
END
