Web Agent Procedure
To create a static ARP entry in your switch's ARP cache using the Web Agent:
- In the navigation pane, expand the Routing > IP > Configuration folders, and then click Static ARP. The IP Static ARP Entries Web page is displayed in the content pane. See Figure�12-8.
Figure 12-8. IP Static ARP Entries Web Page
- Select CREATE. The Add IP Static ARP Entry Web page is displayed. See Figure�12-9.

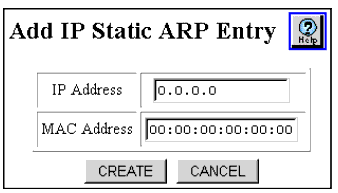

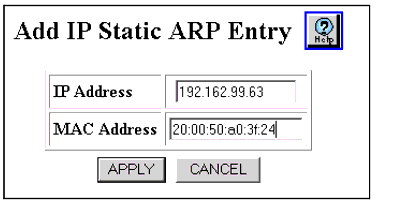

Figure 12-9. Add IP Static ARP Entry Web Page
- See Table�12-6 to configure the Add IP Static ARP Entry Web page parameters:
Table 12-6. IP Static ARP Parameters
| Parameter |
Allows you to... |
| IP Address |
Enter an IP address to associate with the Static ARP entry. |
| MAC Address |
Enter the MAC address of a node to which you want to create a static ARP entry. |
- Click CREATE to save your changes, or CANCEL to restore previous settings.
