Web Agent Procedure

To create a BOOTP/DHCP entry using the Web Agent:

1. In the navigation pane, expand the Routing > IP > Configuration folders, and then click BOOTP/DHCP Servers. The IP BOOTP/DHCP Servers Web page is displayed in the content pane. See Figure�12-10.

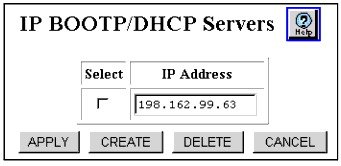

Figure 12-10. IP BOOTP/DHCP Server Web Page

2. Select CREATE. The Add BOOTP/DHCP Server Entry Web page is displayed. See Figure�12-11.

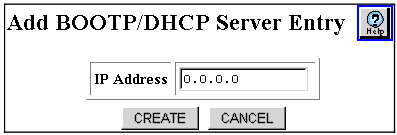

Figure 12-11. Add BOOTP/DHCP Server Entry Web Page

3. Enter the BOOTP/DHCP server IP address in the IP Address field.
4. Click CREATE to save your changes, or CANCEL to restore previous settings.

* Note: It is possible to create multiple BOOTP/DHCP Server Entries if necessary.
