Web Agent Procedure

To globally enable IGMP from the Web Agent:

1. In the navigation pane, expand the Routing > IP > Configuration folders, and then click Global Configuration. The IP Global Configuration Web page is displayed in the content pane. See Figure�12-4.
2. Select Enable from the IP Multicast Forwarding field pull-down menu to enable IP multicast globally.
3. In the navigation pane, expand the Routing > IGMP folders, and then click Global Configuration. The IGMP Global Configuration Web page is displayed in the content pane. See Figure�12-15.

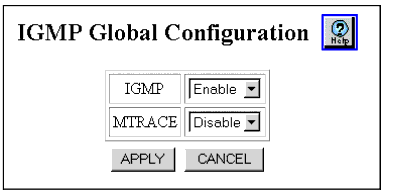

Figure 12-15. IGMP Global Configuration Web Page

4. Select Enable from the IGMP field pull-down menu to enable IGMP.
5. Select Enable from the MTRACE field pull-down menu to enable MTRACE processing.
6. Click APPLY to save your changes, or CANCEL to restore previous settings.
