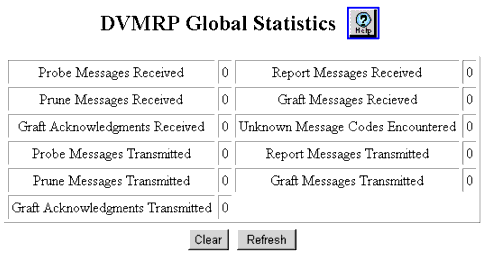

Table 12-19. DVMRP Global Statistics Web Page Parameters
| Statistic |
Defines the number of... |
| Probe Messages Received |
Probe messages received on this switch. DVMRP routers exchange probes and routing updates so they each have a picture of their neighbors' capabilities and the DVMRP network topology. |
| Report Messages Received |
Route Report messages received on this switch. |
| Prune Messages Received |
Prune messages received on this switch. This indicates the number of old branches removed from the multicast distribution tree. |
| Graft Messages Received |
Graft messages received. This indicates the number of attempts at adding a new branch to the multicast distribution tree. |
| Graft Acknowledgments Received |
Graft acknowledgments received. |
| Unknown Message Codes Encountered |
Messages received that are not graft, report, or probe messages. |
| Probe Messages Transmitted |
Probe messages transmitted to the network. |
| Report Messages Transmitted |
Report messages transmitted on this switch. |
| Prune Messages Transmitted |
Prune messages transmitted upstream on this switch. This indicates the number of old branches removed from the multicast distribution tree. |
| Graft Messages Transmitted |
Graft messages transmitted upstream from this switch. This indicates the number of new upstream branches added to the multicast distribution tree. |
| Graft Acknowledgments Transmitted |
Graft acknowledgments sent downstream from this switch. This indicates the number of new downstream branches added to the multicast distribution tree. |
