Web Agent Procedure

To view the DVMRP routing table statistics using the Web Agent:

In the navigation pane, expand the Routing > DVMRP folders, and then click Route Table Statistics.

The DVMRP Routing Table Statistics Web page is displayed in the content pane. See Figure�12-31.

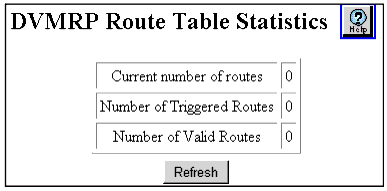

Figure 12-31. DVMRP Route Table Statistics Web Page

See Table�12-22 for an explanation of the DVMRP Route Table Statistics Web page parameters:

Table 12-22. DVMRP Routing Statistical Parameters
Parameter	Defines the...
Current Number of Routes	Total number of routes present in the routing database. This number includes both valid and invalid routes.
Number of Triggered Routes	Total number of routes added to the routing table that were triggered by a topology change in the network.
Number of Valid Routes	Total number of valid routes present in the routing database.
