Web Agent Procedure

To enable an VRRP on an interface using the Web Agent:

1. In the navigation pane, expand the Routing > IP > Configuration folders, and then click Interfaces.

The IP Interfaces Web page is displayed in the content pane. See Figure�12-36.

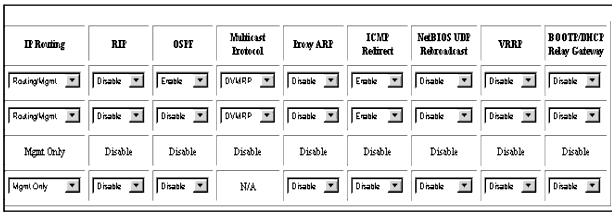

Figure 12-36. IP Interface Web Page

2. Select the interface on which you want VRRP to be enabled.
3. Select Enable from the VRRP field pull-down menu for the interface you selected.
4. Click APPLY to save your changes, or CANCEL to restore previous settings.
