Web Agent Procedure

To create IPX static routes using the Web Agent:

In the navigation pane, expand the Routing > IPX > Configuration folders, and then click Static Routes.

The IPX Static Routes Web page is displayed in the content pane. See Figure�16-6.

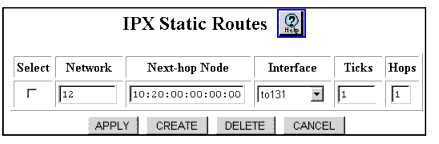

Figure 16-6. IPX Static Routes Web Page

* Note: Only the create button is shown if no IPX Static Routes are configured.

The Add IPX Static Route Web page is displayed. See Figure�16-7.

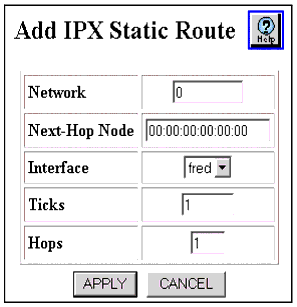

Figure 16-7. Add IPX Static Route Web Page

Table 16-4. IPX Static Route Parameters
Parameter	Allows you to...
Network	Enter the IPX network number that you want to assign to the IPX static route.
Next-Hop Node	Enter the MAC address for the next destination to which the packet is routed. Format of the value to enter is aa:bb:cc:dd:ee:ff.
Interface	View the IPX Interface associated with the next hop.
Ticks	Enter the amount of time (in ticks) that the packet takes to reach the network number you specified. A tick is approximately 1/18th of a second.
Hops	Enter the number of routers (hops) that the packet must pass through before reaching the network number associated with the IPX network.
END

Click APPLY to save your changes, or CANCEL to restore previous settings.
To view or modify IPX Static Routes, expand the Routing > IPX > Configuration folders in the navigation pane, and then click Static Routes.

The IPX Static Routes Web page is displayed in the content pane. See Figure�16-8.

*Note: It is also possible to create a static route by, making a RIP source route from the IPX Static Route Table.

Figure 16-8. IPX Static Routes Web Page
