Web Agent Procedure

To display OSPF links using the Web Agent:

  1. In the navigation pane, expand the Routing > IP > OSPF folders, and then click Links.

    2. The OSPF Links Web page is displayed in the content pane. See Figure�15-10.

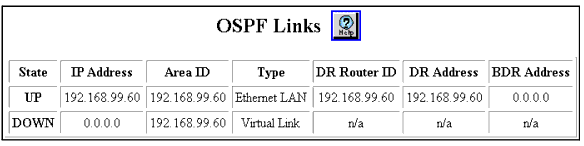

Figure 15-10. OSPF Links Web Page


  1. See Table�15-7 for an explanation of the OSPF Links Web page parameters:

Table 15-7. OSPF Link Parameters
Parameter
Displays the...
State
State of the OSPF link.
IP Address
IP address of the OSPF link.
Area ID
Area ID (IP address) associated with the OSPF link.
Type
Type of OSPF link.
DR Router ID
Router ID of the designated router.
DR Address
IP address of the designated router.
BDR Address
IP address of the designated border router.
END
