Web Agent Procedure

To create a trusted RIP neighbor using the Web Agent:

1. In the navigation pane, expand the Routing > IP > RIP folders, and then click Trusted Neighbors.

The RIP Trusted Neighbors Web page is displayed in the content pane. See Figure�14-3.

2. If a RIP Trusted Neighbor hasn't been configured, only the CREATE button appears in Trusted Neighbor Web page.

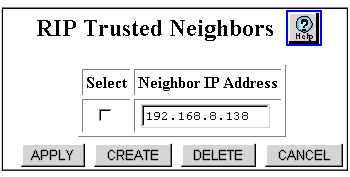

Figure 14-3. RIP Trusted Neighbors Web Page

3. Click CREATE. The Add Trusted RIP Neighbor Web page is displayed. See Figure�14-4.
4. Click on the Select column checkbox for the Trusted Neighbor and click on APPLY to save your changes
5. Click on the Select column checkbox for the Trusted Neighbor and click on DELETE to delete the entry or CANCEL to restore previous settings.

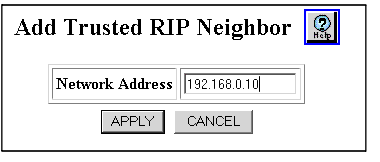

Figure 14-4. Add Trusted RIP Neighbors Web Page

6. Enter the IP address for the node that acts as the trusted RIP neighbor in Network Address field.
7. Click APPLY to save your changes, or CANCEL to restore previous settings.
