Web Agent Procedure

To display your switch's cooling system statistics using the Web Agent:

1. In the navigation pane, expand the System > Configuration folders, and then click Cooling System.

The Cooling System Web page is displayed in the content pane and displays the status of your switch's cooling system. See Figure�3-9 for the P580 switch, or Figure�3-10 for the P882 switch.

Figure 3-9. P580 Cooling System Status Web Page

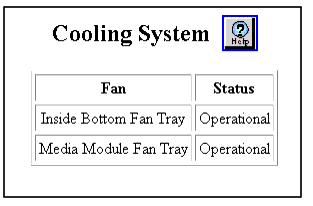

Figure 3-10. P882 Cooling System Status Web Page

2. Check the Status column to ensure that all the individual components are operational.
3. If a component's status is non-operational, power down the switch and contact a service representative to diagnose the failing unit.
