Web Agent Procedure

To enable SNTP on your switch using the Web Agent:

1. In the navigation pane, expand the System > Configuration folders, and then click System Clock.

The System Clock Web page is displayed in the content pane. See Figure�3-2.

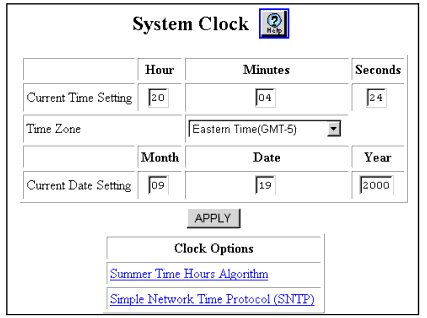

Figure 3-2. System Clock Web page.

2. Select Simple Network Time Protocol (SNTP) from the Clock Options box.

The SNTP Client Configuration Web page is displayed in the content pane. See Figure�3-3.

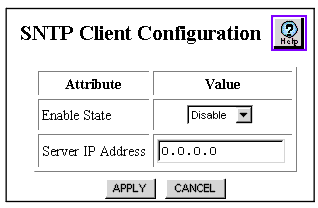

Figure 3-3. SNTP Client Configuration Web Page

3. Select Enable from the Enable State pull-down menu. The default is Disable.
4. Enter the server IP address in the Server IP address field for the switch on which you want to enable SNTP.
5. Click APPLY to save your changes, or CANCEL to clear your selection.
