Configuring VLAN Parameters

To configure all ports assigned to a VLAN:

  1. In the navigation pane, expand the L2 Switching > VLANs folders, and then click Configuration. The VLAN Configuration Web page is displayed in the content pane. See Figure�6-3.
  2. Click on the Name of the VLAN whose members you want to view.

    3. The VLAN Switch Ports Web page is displayed in the content pane. See Figure�6-5.

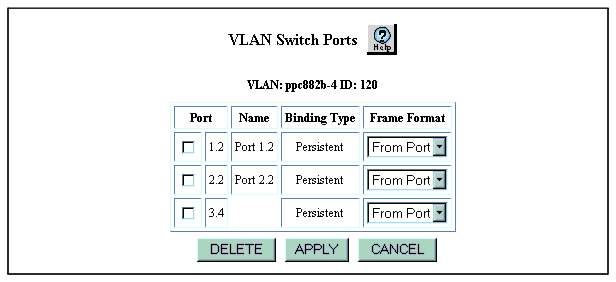

Figure 6-5. VLAN Switch Ports Web Page


  1. See Table�6-2 to configure the VLAN Switch Ports Web page parameters:

Table 6-2. VLAN Switch Port Web Page Parameters
Parameter
Defines...
Port
The switch port associated with the VLAN.
Name
The switch default port name or the user assigned port name.
Binding Type
The binding types are set through the switch ports. See "Assigning VLANs to a Port and Associated Issues" in Chapter�8, "Configuring Ports."
  • Static - when switch ports are added manually and can be removed
  • Persistent - when switch ports are bound to VLANs automatically but can not be removed. automatically (i.e., if the binding for a switch port is set to 'Bind to All').
  • Dynamic - when a switch port is assigned to VLAN using automatic VLAN binding,(i.e. if the binding for a switch port is set to "Bind to Received"). The VLAN may be deleted, but if the port VLAN binding is "Bind to Received", the VLAN may be re-added by receiving tagged traffic. This causes the port to again dynamically bind to the VLAN.
Frame Format
  • From Port - causes port to send frames using the frame format specified in the Trunk Mode attribute of the corresponding switch port.
  • Clear - causes port to send untagged frames on this port for this VLAN.

Note: See "VLAN Introduction" earlier in this chapter.

END

  1. Click APPLY to save your changes, or CANCEL to restore previous settings.
