Web Agent Procedure

To reset the switch after downloading new application software:

1. In the navigation pane, expand the System folder.
2. Select System Reset.

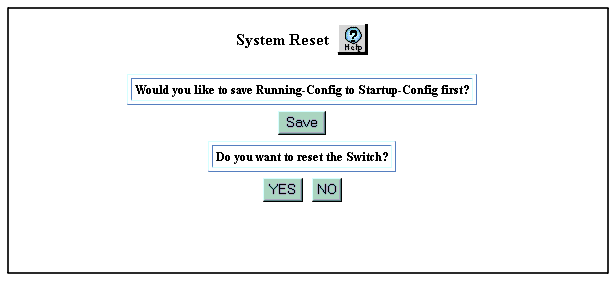

The System Reset Web page is displayed in the content pane (Figure�252).

Figure�252:�System Reset Web Page

3. Select Yes in response to the question, Do you want to reset the switch?

The switch resets and loads the new application software.
