Web Agent Procedure

To add or delete interfaces to an NBP filter using the Web Agent:

1. In the navigation pane, expand the Routing > AppleTalk > Configuration folders, and then click NBP Filter.

The AppleTalk NBP Filter Web page is displayed in the content pane. See Figure�199.

2. Select Edit If. The Add/Delete Interface to NBP Filter Web page is displayed. See Figure�200.

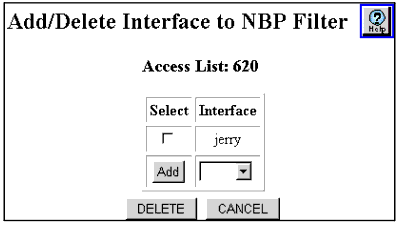

Figure�200:�Add/Delete Interface to NBP Filter Web Page

3. Select the interface to be added in the Add field.

Or

Click an interface from the Select column for the interface that you want to be remove.

4. Click:
• Add to add this NBP filter to the selected interface.
• DELETE to remove this NBP filter from the selected interface.
• CANCEL to restore previous settings.
