Web Agent Procedure
To create an AppleTalk zone filter using the Web Agent:
- In the navigation pane, expand the Routing > AppleTalk > Configuration folders, and then click Zone Filter.
The AppleTalk Zone Filter Web page is displayed in the content pane. See Figure�201.

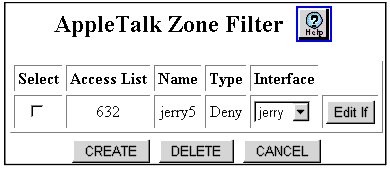

Figure�201:�AppleTalk Zone Filter Web Page
- Select CREATE. The Add AppleTalk Zone Filter Web page is displayed. See Figure�202.

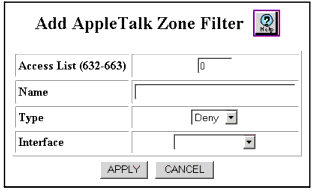

Figure�202:�Add AppleTalk Zone Filter Web Page�
- See Table�137 to configure the Add AppleTalk Zone Filter parameters.
- Click APPLY to add the new zone filter, or CANCEL to restore previous settings.
Table�137:�Add AppleTalk Zone Filter Parameters �
| Parameter |
Description |
| Access List |
Enter the access list number to be associated with the zone filter. Valid values are 632-663. |
| Name |
Enter the name of the zone to be filtered. You can also leave this field blank for wildcarding. |
| Type |
Select the type of filtering. The options include:
|
| Interface |
Select the interface to apply this filter to. |
|
