Web Agent Procedure

To view the AppleTalk Interface statistics table using the Web Agent:

  1. In the navigation pane, expand the Routing > AppleTalk > Display folders, and then click Interface Statistics.

    2. The AppleTalk Interface Statistics Table is displayed in the content pane. See Figure�205.

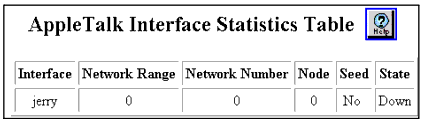

Figure�205:�AppleTalk Interface Statistics Table


  1. See Table�139 for information on the AppleTalk Interface Statistics Table.

Table�139:�AppleTalk Interface Statistics Table �
Parameter
Description
Interface
Displays the name of the AppleTalk interface.
Network Range
Displays the network range associated with the AppleTalk interface.
Network Number
Displays the network number of this node.
Node
Displays the node number of this node.
Seed
Displays whether the AppleTalk interface seeded the network.
State
Displays the state of the AppleTalk interface. The options include:
  • Up - indicates that the AppleTalk interface is active.
  • Down - indicates that the AppleTalk interface is inactive.
