Web Agent Procedure

To view the AppleTalk route table, and delete or flush entries from the table using the Web Agent:

  1. In the navigation pane, expand the Routing > AppleTalk > Display folders, and then click Route Table.

    2. The AppleTalk Route Table is displayed in the content pane. See Figure�206.

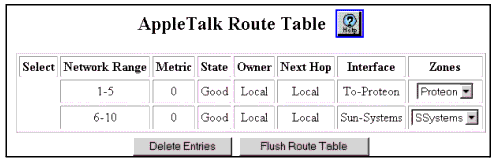

Figure�206:�AppleTalk Route Table Web Page


  1. See Table�140 for information about the AppleTalk Route Table parameters.
  2. Click Delete Entries to remove selected route table entries.

    3. OR

    Click Flush Route Table to empty the route table of all dynamic entries. Static and Local entries are not flushed.

Table�140:�AppleTalk Route Table Parameters �
Parameter
Description
Select
Select the entry to be acted upon.
Network Range
Displays the network range.
Metric
Displays the AppleTalk metric for the network range.
State
Displays the state of the entry.The options include:
  • Good
  • Suspect
  • Going Bad
  • Bad
Owner
Displays the AppleTalk component responsible for the addition of the route.The options include:
  • Local
  • Static
  • RTMP
Next Hop
Displays the next hop address where forwarded packets are routed.
Interface
Displays the Appletalk interface associated with the route table entry.
Zones
Displays the zones associated with the selected AppleTalk route.
