Web Agent Procedure

To view the AppleTalk ARP cache table using the Web Agent:

  1. In the navigation pane, expand the Routing > AppleTalk > Display folders, and then click ARP Table.

    2. The AppleTalk ARP Cache Table is displayed in the content pane. See Figure�208.

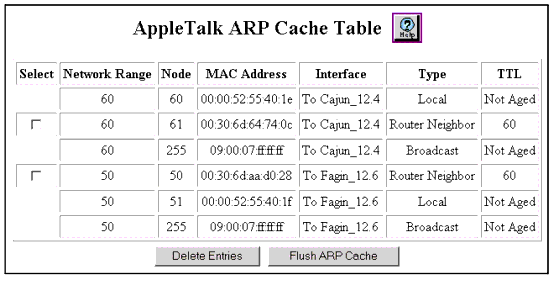

Figure�208:�AppleTalk ARP Cache Table


  1. See Table�142 for a definition of the AppleTalk ARP Cache Table parameters.
  2. Select the ARP entries that you want to delete and click Delete Entries.

    3. or

    Click Flush Route Table to reset the ARP cache table entries. Only Dynamic and Router Neighbor entries are flushed.

Table�142:�AppleTalk ARP Cache Table Parameters �
Parameter
Description
Select
Select the table entry to be acted upon.
Network Range
Displays the network range.
Node
Displays the node number for the entry.
MAC Address
Displays the MAC address associated with the AppleTalk ARP cache table entry of the node.
Interface
Displays the AppleTalk interface associated with the AppleTalk ARP cache table entry.
Type
Displays the type of cache entries.The values are:
  • Local
  • Broadcast
  • Dynamic
  • Router Neighbor
TTL
Displays the time-to-live value for the selected AppleTalk ARP cache table entry. Local and Broadcast entries do not time out.
