Web Agent Procedure
To view AppleTalk zone table statistics using the Web Agent:
- In the navigation pane, expand the Routing > AppleTalk > Display folders, and then click Zone Table Statistics.
The AppleTalk Zone Table Statistics Web page is displayed in the content pane. See Figure�210.

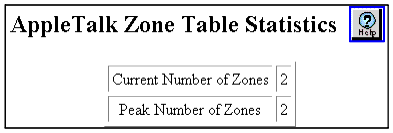

Figure�210:�AppleTalk Zone Table Statistics
- See Table�144 for an explanation of the AppleTalk Zone Table Statistics.
Table�144:�AppleTalk Zone Table Statistics
| Parameter |
Description |
| Current Number of Zones |
Displays the current number of AppleTalk zones. |
| Peak Number of Zones |
Displays the peak number of AppleTalk zones. |
|
