Displaying and Searching the L3 Forwarding Cache for an Entry
Web Agent Procedure
You can display and search the Layer 3 Forwarding Cache for an entry using the Web Agent, To display the contents of the L3 forwarding Cache, you can use the search function to display:
- only the selected options,
- or all options by not selecting any options and clicking on the search button.
Note: Layer 3 Active Forwarding Cache entry Search is available with the Web Agent only, no CLI version.
To search the L3 address cache using the Web Agent:
- In the navigation pane, expand the Routing > L3 Forwarding Cache folders, and then click Entry Search.
The Active Forwarding Cache Entry Search Web page is displayed in the content pane. See Figure�236.

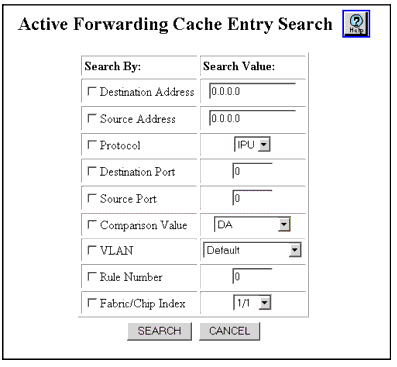

Figure�236:�Active Forwarding Cache Entry Search Web Page
- Select the search criteria that you want to use to find more specific information on available routes from the Search By column.
For example, if you want to find all entries in the Forwarding Cache by a VLAN, you would select the VLAN check box in the Search By column,and then select the appropriate VLAN. Figure�237 is the actual display results from a Forwarding Cache search done by a VLAN.
See Table�171 for an explanation of the Active Forwarding Cache Entry Search parameters:
Table�171:�Active Forwarding Cache Entry Search Parameters �
| Parameter |
Search for all entries... |
| Destination Address |
Within the routing cache that match the specified destination address (IP address), or IPX network number |
| Source Address |
Within the routing cache that match the specified source address (IP address), or IPX network number |
| Protocol |
By protocol identifier. By default, this field is 0 for IP. |
| Destination Port |
Within the routing cache that match the specified destination port (IPU, IPM, IPX). |
| Source Port |
Within the routing cache that match the specified source port (IPU, IPM, IPX). |
| Comparison Value |
Within the routing cache that match the specified comparison value (TCP/UDP). Values include:
- DA - Destination address
- DASA - Destination and source address
- DAPROT - Destination address and protocol
- DADP - Destination address and destination port number
- DASAPROT - Destination and source address and protocol
- DASADPSP - Destination and source address, and the corresponding destination and source port numbers
|
| VLAN |
Within the routing cache that match the VLANs listed. |
| Rule Number |
Within the routing cache that matches the specified rule number associated with an access list. |
| Fabric/Chip Index |
Match the Forwarding Chip that is associated with the fabric port ID. |
|

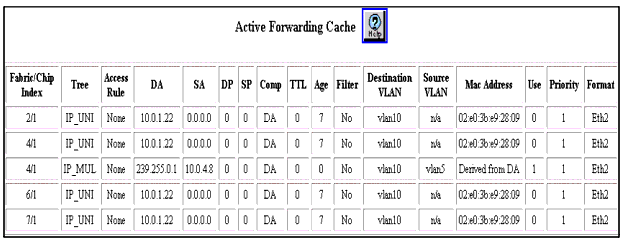

Figure�237:�Forwarding Cache Search by VLAN
