Web Agent Procedure

To view LDAP statistics using the Web Agent:

  1. In the navigation pane, expand the Routing > IP > Display folders, and then click LDAP Statistics.

    2. The LDAP Statistics Web page is displayed in the content pane. See Figure�133.

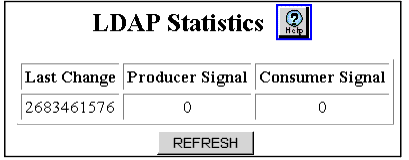

Figure�133:�LDAP Statistics Web Page


  1. Click Refresh to dynamically update LDAP Statistics parameters.
  2. See Table�96 for an explanation of the LDAP Statistics.

Table�96:�LDAP Statistics �
Parameter
Description
Last Change
Displays the sysUpTime since this device was last modified. You can detect a change in the Policy Capabilities by polling a single object using this information.
Producer Signal
The sequence number that, when modified, triggers the LDAP client to download the latest policy from the LDAP server. Typically, Avaya Policy Manager will set this value whenever there is a new policy to download. If this value is a non-zero value, the LDAP client will compare it to the producer signal on the LDAP server. No comparison is made if the value is zero.
Consumer Signal
Indicates the success of the LDAP client when downloading a policy. If the consumer signal matches the producer signal, downloading LDAP to a policy was successful. If the consumer signal is -1, then either the LDAP client had a problem processing the access lists or the consumer signal set on the LDAP client did not match the signal configured on the LDAP server. If the consumer signal is not -1 and does not match the producer signal, then the LDAP client was unable to connect to the LDAP server(s).
