Web Agent Procedure
To create a static ARP entry in your switch's ARP cache using the Web Agent:
- In the navigation pane, expand the Routing > IP > Configuration folders, and then click Static ARP. The IP Static ARP Entries Web page is displayed in the content pane. See Figure�99.
Figure�99:�IP Static ARP Entries Web Page
- Select CREATE. The Add IP Static ARP Entry Web page is displayed. See Figure�100.

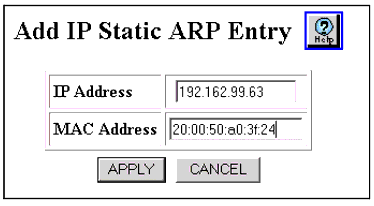

Figure�100:�Add IP Static ARP Entry Web Page
- See Table�67 to configure the Add IP Static ARP Entry parameters:
Table�67:�Add IP Static ARP Entry Parameters
| Parameter |
Description |
| IP Address |
Enter an IP address to associate with the Static ARP entry. |
| MAC Address |
Enter the MAC address of a node to which you want to create a static ARP entry. |
- Click CREATE to save your changes, or CANCEL to restore previous settings.
