Web Agent Procedure

To create a BOOTP/DHCP entry using the Web Agent:

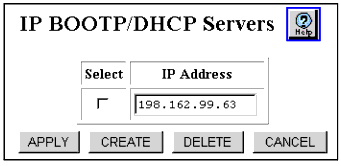

1. In the navigation pane, expand the Routing > IP > Configuration folders, and then click BOOTP/DHCP Servers. The IP BOOTP/DHCP Servers Web page is displayed in the content pane. See Figure�101.

Figure�101:�IP BOOTP/DHCP Server Web Page

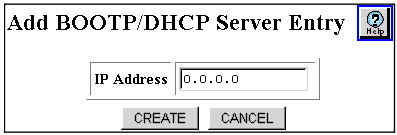

2. Select CREATE. The Add BOOTP/DHCP Server Entry Web page is displayed. See Figure�102.

Figure�102:�Add BOOTP/DHCP Server Entry Web Page

3. Enter the BOOTP/DHCP server IP address in the IP Address field.
4. Click CREATE to save your changes, or CANCEL to restore previous settings.

Note: It is possible to create multiple BOOTP/DHCP Server Entries if necessary.
