Searching the IP ARP Cache
To search the IP ARP Cache entries:
- In the navigation pane, expand the Routing > IP > Display folders, and then click ARP Cache Search.
The ARP Cache Entry Search Web page is displayed in the content pane. See Figure�114.

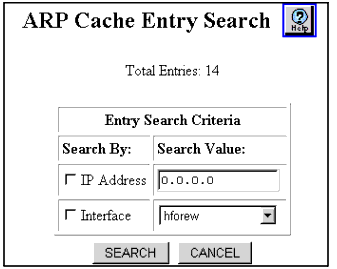

Figure�114:�ARP Cache Entry Search Web Page
- Select the search criteria you want to use to find more specific information on your switch's current ARP cache. For example, if you want to find all of the IP ARP cache entries associated with your out-of-band connection on your switch, search by VLAN and specify Ethernet Console as your search value.
- See Table�75 for an explanation of the ARP Cache Search parameters:
Table�75:�ARP Cache Search Parameters
| Parameter |
Searches for... |
| IP Address |
The IP address you entered. |
| Interface |
The interface you selected. System entries include all interfaces that you previously configured. |
- Click SEARCH to start the search. If matching entries are found they are displayed in IP ARP Cache Web page.
