Displaying IGMP Global Statistics

Web Agent Procedure

IGMP global statistics provides membership reports, membership queries transmitted and received, and unknown messages.

To display IGMP global statistics from the Web Agent:

  1. In the navigation pane, expand the Routing > IGMP folders, and then click Global Statistics.

    2. The IGMP Global Statistics Web page is displayed in the content pane. See Figure�115.

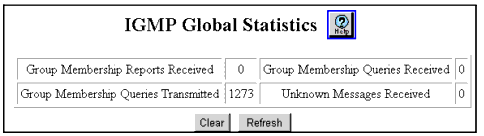

Figure�115:�IGMP Global Statistics Web Page


  1. To modify your global statistics, perform one of the following:
  2. See Table�76 for an explanation of the IGMP Global Statistics:

Table�76:�IGMP Global Statistics �
Parameter
Description
Group Membership Reports Received
Number of reports received in response to a group membership query. Hosts respond to a Query by generating Host Membership Reports reporting each host group to which they belong on the network interface from which the Query was received.
Group Membership Queries Transmitted
Number of query messages sent by all local IGMP interfaces. These messages are sent to discover which host groups have members on their attached local networks. Queries are addressed to the all-hosts group (address 224.0.0.1), and carry an IP time-to-live of 1.
Group Membership Queries Received
Number of query messages received by all local IGMP interfaces.
Unknown Messages Received
IGMP message of a type other than Group Membership Query, Group Membership Report, or Leave group.
