Web Agent Procedure

To display DVMRP interface statistics using the Web Agent:

  1. In the navigation pane, expand the Routing > DVMRP folders, and then click Interface Statistics.

    2. The DVMRP Interface Statistics Web page is displayed in the content pane. See Figure�120.

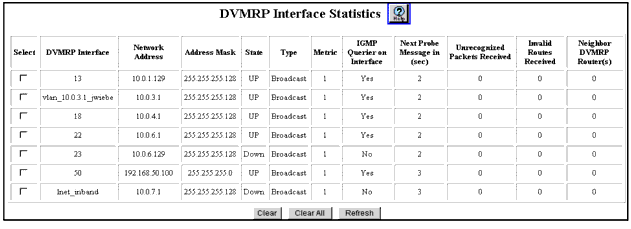

Figure�120:�DVMRP Interface Statistics Web Page


  1. Select an interface and perform one of the following:
  2. See Table�81 for an explanation of the DVMRP Interface Statistics.

Table�81:�DVMRP Interface Statistics �
Parameter
Description
DVMRP Interface
IP interface configured with the DVMRP multicast routing protocol.
Network Address
IP address of the interface configured with the DVMRP multicast.
Address Mask
IP subnet mask associated with the interface.
State
Current status of the interface. Possible status indications include:
  • UP - The interface is active.
  • DOWN - The interface is inactive.
Type
Type of interface configured. Possible values include:
  • Broadcast - All traffic is forwarded through the routers. This is not a tunnel and does not require encapsulation.
  • IPIP Tunnel - All multicast traffic (data and protocol messages) on this interface is encapsulated in IP unicast packets with the protocol set to IPIP (IP in IP).
  • Non-Encapsulated Tunnel - All multicast data traffic on this interface is IPIP encapsulated, but the protocol messages are simple unicast.
Metric
Interface cost.
IGMP Querier on Interface
Router is the IGMP querier. The purpose of the IGMP querier is to periodically poll hosts on your network to trigger group membership reports.
Next Probe Message in (sec)
Time (in seconds) remaining until the next probe message is sent.
Unrecognized Packets Received
Number of unknown DVMRP messages.
Invalid Routes Received
Number of invalid routes received on this interface.
Neighbor DVMRP Router(s)
Number of (neighbor) routers that are also running DVMRP.

Note: This number is a hypertext link that provides additional information on the DVMRP neighbor router(s).
