Web Agent Procedure

To view the DVMRP routing table statistics using the Web Agent:

  1. In the navigation pane, expand the Routing > DVMRP folders, and then click Route Table Statistics.

    2. The DVMRP Routing Table Statistics Web page is displayed in the content pane. See Figure�122.

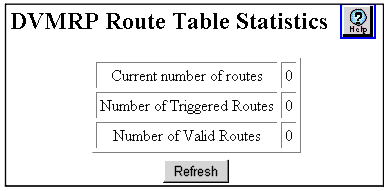

Figure�122:�DVMRP Route Table Statistics Web Page


  1. See Table�83 for an explanation of the DVMRP Route Table Statistics.

Table�83:�DVMRP Route Table Statistics�
Parameter
Description
Current Number of Routes
Total number of routes present in the routing database. This number includes both valid and invalid routes.
Number of Triggered Routes
Total number of routes added to the routing table that were triggered by a topology change in the network.
Number of Valid Routes
Total number of valid routes present in the routing database.
