Web Agent Procedure

To view the DVMRP route table using the Web Agent:

In the navigation pane, expand the Routing > DVMRP folders, and then click Route Table.

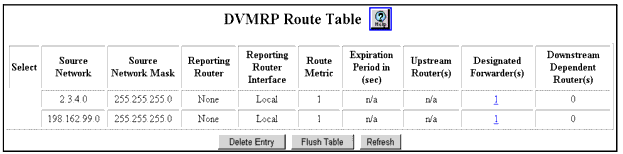

The DVMRP Route Table Web page is displayed in the content pane. See Figure�123.

Figure�123:�DVMRP Route Table Web Page��

To modify your DVMRP Route table, do one of the following:

To delete one or more entries., select the entry and click Delete Entry
To clear the entire table, click Flush Table.
To receive the most up-to-date information on the entries in the table, Click REFRESH.

See Table�84 for an explanation of the DVMRP Route Table parameters:

Table�84:�DVMRP Route Table Parameters �
Parameter	Description
Source Network	Network from which a multicast flow may originate.
Source Network Mask	Source network mask.
Reporting Router	IP address of the router reporting this route to its neighbors.
Reporting Router Interface	IP interface configured, which leads to the upstream neighbor (DVMRP router).
Route Metric	Router's cost to source network.
Expiration Period in (sec)	Time (in seconds) remaining before the source network is removed from the DVMRP routing table.
Upstream Router(s)	IP address of the DVMRP router that is the upstream neighbor to the local router. The local DVMRP router must know which DVMRP router is its upstream neighbor to determine how packets from a given source will be transmitted to a given multicast group. Displays the DVMRP Upstream Router(s) Web page.
Designated Forwarder(s)	Network router(s) responsible for forwarding from the source network onto the downstream interface. Displays the Designated Forwarders Web page.
Downstream Dependent Router(s)	Number of downstream DVMRP routers that are dependent on this router for this particular route. Displays the DVMRP Downstream Dependent Router(s) Web page.
