Web Agent Procedure

To globally enable VRRP using the Web Agent:

1. In the navigation pane, expand the Routing > IP > Configuration folders, and then click Global Configuration.

The IP Global Configuration Web page is displayed in the content pane. See Figure�126.

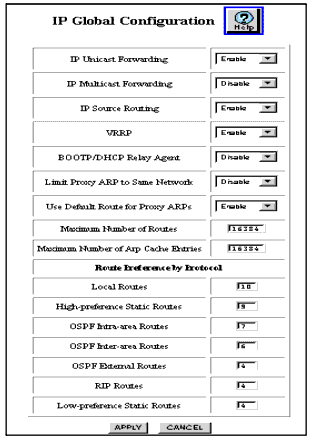

Figure�126:�IP Global Configuration Web Page

2. Select Enable in the VRRP field.
3. Click APPLY to save your changes, or CANCEL to restore previous settings.
