Searching the IPX Route Table

To search the IPX route table:

  1. In the navigation pane, expand the Routing > IPX > Display folders, and then click Route Table Search.

    2. The IPX Route Table Search Web page is displayed in the content pane. See Figure�173.

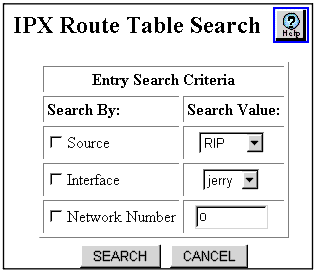

Figure�173:�IPX Route Table Search Web Page


  1. Select the SEARCH Criteria you want to use to find information on specific routes. For example, if you want to find all static routes that are presently configured on your switch, search by source and specify static as your search value.
  2. See Table�121 to determine the search parameters:

Table�121:�IPX Route Table Search Parameters �
Parameter
Description
Source
Search the IPX route table using of the following parameters:
  • RIP - RIP routing updates
  • Static - User configuration
  • Local - Directly connected routes
Once you select a parameter, you can search to find the routes associated with that parameter.
Interface
Search the IPX Route table using the interface associated with the next-hop to the IPX network.
Network Number
Search the IPX Route table using the IPX Network address (hexadecimal number) you specify.

  1. Click on the Search button to start:
