Searching the IPX Service Table

To search the IPX service table:

  1. In the navigation pane, expand the Routing > IPX > Display folders, and then click Service Table Search.

    2. The IPX Service Table Search Web page is displayed in the content pane. See Figure�175.

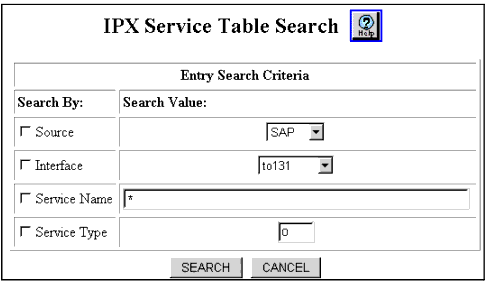

Figure�175:�IPX Service Table Search Web Page


  1. Select the search criteria you want to use to find information on specific services in the Search By column. For example, if you want to find all static services that are presently configured on your switch, select Source from the Search By column and specify Static as your search value.
  2. See Table�124 to determine the search parameters:

Table�124:�IPX Service Table Search Parameters �
Parameter
Description
Source
Search the IPX Service Table using one of the following parameters:
  • SAP - Services learned via the SAP protocol
  • Static - User configuration
  • Local - Local services
Once you select a parameter, you can search to find the routes associated with that parameter.
Interface
Search the IPX Service Table using the interface associated with the next-hop to the service.
Service Name
Search the IPX Service Table using a service name you specify. Note that you can specify a single asterisk (*) to indicate a wildcard character that will match all characters entered before the wildcard. For example, entering FS_ENG* will find all service names that start with FS_ENG.
Service Type
Search the IPX Service Table using the service type you specify. For example, to specify a print queue type, you would enter 3 (0003h) in the space provided.

  1. Click on the SEARCH to start the search.
