Web Agent Procedure

To Enable or Disable IPX routing globally using the Web Agent:

  1. In the navigation pane, expand the Routing > IPX > Configuration folders and then click Global Configuration.

    2. The IPX Global Configuration Web page is displayed in the content pane. See Figure�162.

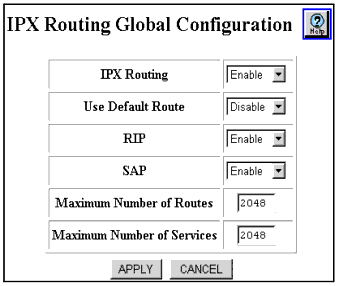

Figure�162:�IPX Global Configuration Web Page


  1. Configure IPX Routing Global Configuration Web page parameters to make your switch an IPX router. See Table�116 for an explanation of the Web page parameters.
  2. Click APPLY to save your changes, or CANCEL to restore previous settings.

Table�116:�IPX Routing Global Configuration Parameters �
Parameter
Description
IPX Routing
Select Disable to prevent IPX from routing globally. The default value is Enable.
Use Default Route
Select Enable if you know the default route. The default value is Disable.
RIP
Select Disable to prevent IPX RIP from routing globally. This affects all IPX interfaces set up to use the IPX RIP routing protocol. The default value is Enable.
SAP
Select Disable to prevent IPX SAP from routing globally. This affects all IPX interfaces set up to use the IPX SAP routing protocol. The default value is Enable.
Maximum Number of Routes
Enter the maximum number of routes that can be added to the routing table. The switch rounds your entry to the nearest power of 2. For example, if you enter 1000, the system rounds this number up to 1024 routes. The default value is 2048.
Maximum Number of Services
Enter the maximum number of services that can be added. The switch rounds your entry to the nearest power of 2. For example, if you enter 1000, the system rounds this number up to 1024 services. The default value is 2048.
