Web Agent Procedure

To create a new static multicast session using the Web Agent:

In the navigation pane, expand the L2 Switching > Intelligent Multicast folders, and then click Static Sessions.

The Static Multicast Sessions Web page is displayed in the content pane. See Figure�217.

Note: You must enable intelligent multicasting on a global basis to make your static multicast session active. See "Configuring Global Intelligent Multicasting" earlier in this chapter.

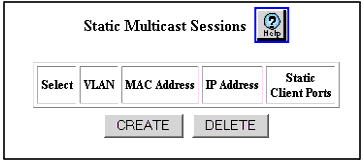

Figure�217:�Static Multicast Session Web Page

Select Create to create a new session. The Static Multicast Session Configuration Web page is displayed. See Figure�218.

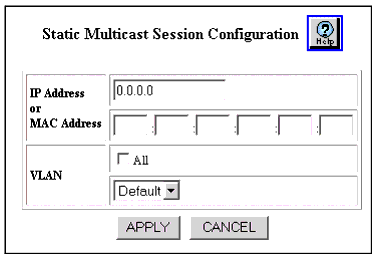

Figure�218:�Static Multicast Session Configuration Web Page

Configure the Static Multicast Session Configuration parameters. See Table�151.
Click APPLY to create the new static multicast session, or CANCEL to restore previous settings.

Table�151:�Static Multicast Session Configuration Parameters �
Parameter	Description
IP Address	Enter the IP address of the new static multicast session. The range must be between 224.0.1.0 to 239.255.255.255.
MAC Address	Enter the MAC address of the new static multicast session. Specifying the MAC address is not used for an IP multicast session.
VLAN	Enter the VLAN associated with the new multicast session. Select All to add all VLANs to the multicast session, or select a specific VLAN.
