Web Agent Procedure

Web Agent Procedure

To delete a static multicast session using the Web Agent:

In the navigation pane, expand the L2 Switching > Intelligent Multicast folders, and then click Static Sessions.

The Static Multicast Sessions Web page is displayed in the content pane. See Figure�219. See Table�152 for an explanation of the Static Multicast Sessions parameters.

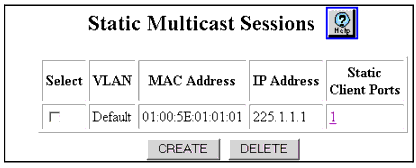

Figure�219:�Static Multicast Sessions Web Page

Select the check box next to the static multicast session that you want to delete.
Click DELETE to remove the static multicast session.

Table�152:�Static Multicast Session Parameters �
Parameter	Description
Select	Select the static multicast session to be deleted.
VLAN	Displays the VLAN on which the static multicast session exists.
MAC Address	Displays the MAC address of the static multicast session.
IP Address	Displays the IP address associated with the static multicast session, if available.
Static Client Ports	Displays the number of static client ports associated with the static multicast session and opens the Static Multicast Session Client Ports Web page.
